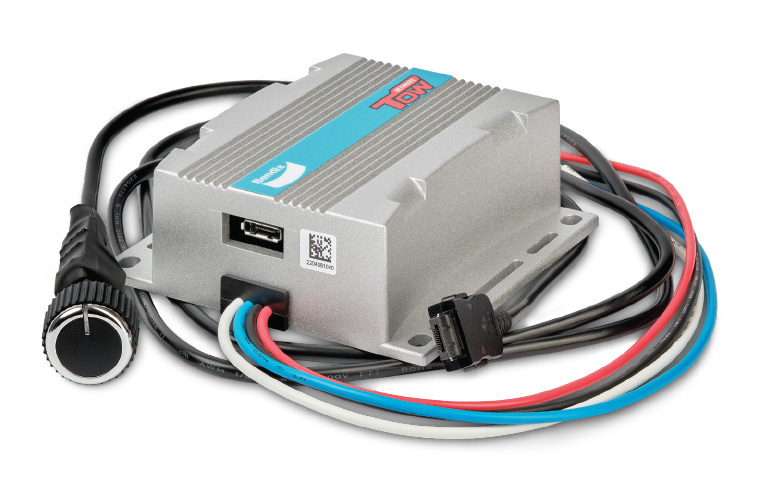

Ultimate Tow

• Fits Ford Ranger and other late model vehicles
• Protection blocking diode included in kit
• 12V, full electronic control unit
• Easy to install, multiple fitment options for remote head
• Compact and rugged aluminium housing, mounts on any angle

Bendix’s remote head is compact and easy to install. With easy installation, your unit can be installed with just one hole, the remote head can fit in the smallest of knock out panels in your vehicle. It features a slim-line, OEM look with a built-in LED.

The Ultimate Tow™ allows you to adjust your braking force and operate the override function with ease. If you are worried about space behind the dash, Bendix has you covered, the Ultimate Tow™’s control module can be fitted up to 1.28m away from the remote head mounted in your dash. Mounting the control module is as simple as cable-tying it to a harness or mounting it with the screws provided.

Manufactured with a rugged cast alloy enclosure, the Ultimate Tow™ controller is dust and moisture resistant so that even in the harshest braking conditions heat is dissipated efficiently so you can keep going.

The true innovation lays within the operating systems of the Ultimate Tow™ controller. Designed, engineered, and tested in Australia for Australian driving conditions, it represents a quantum leap in brake control technology.

Your new Ultimate Tow™ controller comes fully programmed and tested from an Australian based facility. Boasting a 3-year warranty, you simply need to wire it up and hit the road, worry-free.

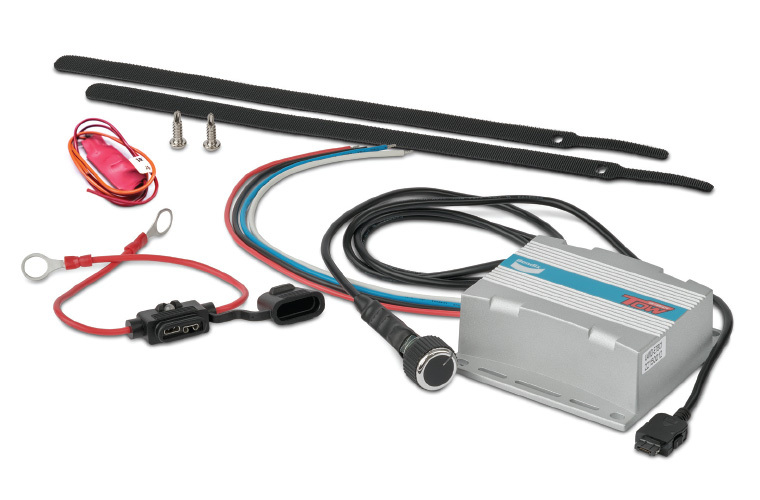

• 1 x Bendix Ultimate Tow™ Electric Brake Controller
• 1 x Control dial
• 1 x Control dial lead
• 1 x Fuse holder assembly
• 2 x Self-tapping mounting screws
• 2 x Nylon fabric fastening hook and loop straps
• 1 x Decal sheet (with 4 dash decal sizes)
• 1 x Instruction manual
• 1 x Protection blocking diode
• 1 x Double-sided adhesive EVA foam mounting pad (78 × 61mm)
• 1 x 15A blade fuse
